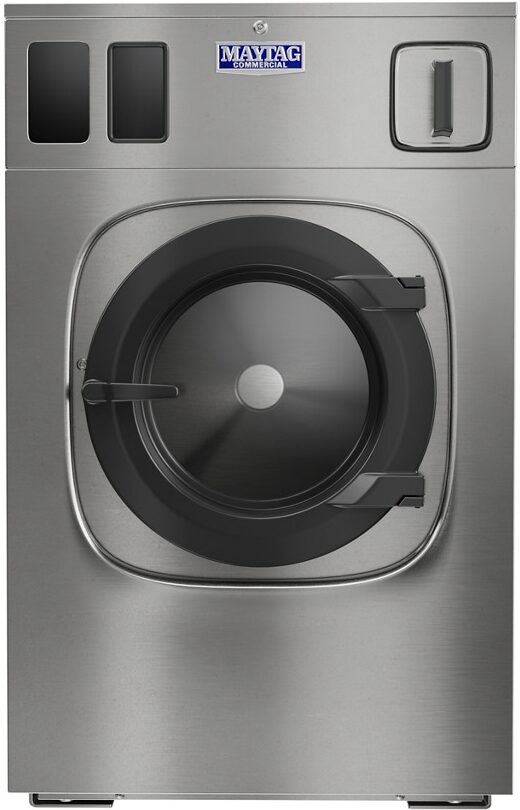

85lb, Maytag Washer, Rigid Mount, Card Ready, 150G, 208-240V / 60 Hz / 1 Ph
The Maytag® MWR85PRATS is an 85 lb (38.6 kg) rigid‑mount, front‑load washer configured for card‑based vended operation. It provides the same large‑capacity stainless‑steel platform and programmable control as the coin model, with 150 G extraction, delivered card‑ready without a coin drop for integration with cashless systems.
Features
- Card‑ready electronic payment interface (no coin drop)
- Large‑capacity, rigid‑mount design
- 180° door opening
- 4‑compartment front soap dispenser; automatic dosing compatible
- AISI 304 stainless‑steel drum, tub, and front panel
- Ceramic‑coated shaft sleeve
- Fully programmable vertical touchscreen control
- 150 G extraction
- Large 3″ drain valve; soap box spray rinse
- Stainless‑steel top panel
Short Characteristics
| Rated Capacity | 85 lb (38.6 kg) |
|---|---|
| Extraction (G‑Force) | 150 |
| Drum Diameter × Depth | 35.4 in × 22.6 in (899 mm × 574 mm) |
| Drum Volume | 12.9 cu ft (365 L) |
| Unpacked Dimensions (W×D×H) | 42.1 × 50.4 × 65.6 in (1,070 × 1,280 × 1,666 mm) |
| Net Weight | 1,323 lb (600 kg) |
| Voltage / Phase / Frequency | 208–240 V, 1‑Phase, 50/60 Hz |
| Water Use per Cycle | Cold 23.5 gal (89 L) • Hot 26.2 gal (99 L) • Total 49.7 gal (188 L) |
| Drain Valve | 3″ (76.2 mm) outer diameter |
