55lb, Maytag Washer, Rigid Mount, Card Ready, 200G, 208-240V / 60 Hz / 1 Ph

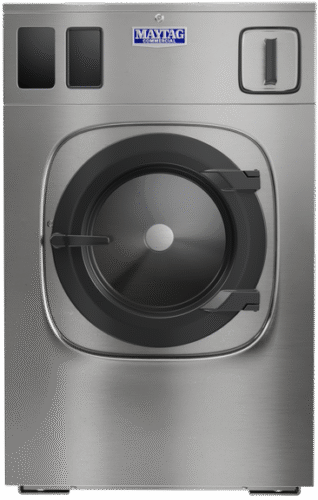

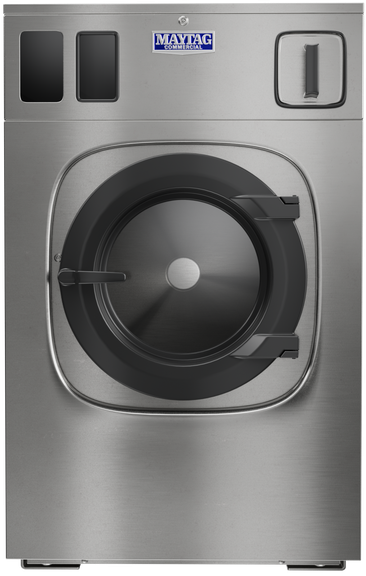

The Maytag® MWR55PRATS is a 55 lb (25.0 kg) rigid‑mount, front‑load washer configured for cashless payment. Card‑ready integration (no coin drop) supports modern vended systems while preserving the same mechanical design, stainless‑steel construction, and programmable control found in the coin model, with up to 200 G extraction.
Features
- Card‑ready electronic payment interface (no coin drop)
- Compact, modern, space‑saving cabinet
- 180° door opening
- 4‑compartment front soap dispenser; automatic dosing compatible
- AISI 304 stainless‑steel drum, tub, and front panel
- Ceramic‑coated shaft sleeve
- Fully programmable vertical touchscreen control
- Up to 200 G extraction
- Large 3″ drain valve; soap box spray rinse
- Stainless‑steel top panel
Short Characteristics
| Rated Capacity | 55 lb (25.0 kg) |
|---|---|
| Extraction (G‑Force) | 200 |
| Drum Diameter × Depth | 27.6 in × 24.8 in (701 mm × 630 mm) |
| Drum Volume | 8.5 cu ft (241 L) |
| Unpacked Dimensions (W×D×H) | 34.2 × 48.4 × 54.7 in (869 × 1,230 × 1,390 mm) |
| Net Weight | 970 lb (440 kg) |
| Voltage / Phase / Frequency | 208–240 V, 1‑Phase, 50/60 Hz |
| Water Use per Cycle | Cold 20.6 gal (78 L) • Hot 19.3 gal (73 L) • Total 39.9 gal (151 L) |
| Drain Valve | 3″ (76.2 mm) outer diameter |
