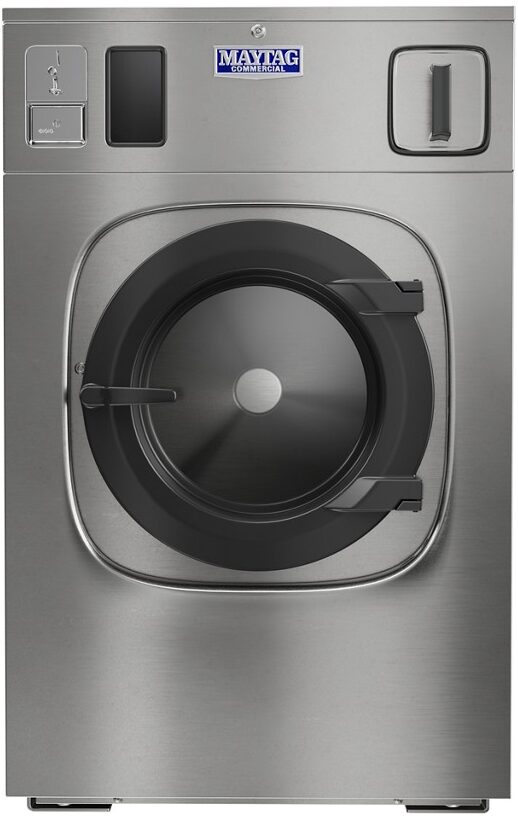

45lb, Maytag Washer, Rigid Mount, Single Coin Drop, 200G, 208-240V / 60 Hz / 1 Ph
The Maytag® MWR45PDATS is a 45 lb (20.5 kg) rigid‑mount, front‑load washer for continuous coin‑operated service. With stainless‑steel drum/tub/front panel and a ceramic‑coated shaft sleeve, it is engineered for durability. The vertical touchscreen control provides full programmability, and up to 200 G extraction enhances moisture removal.
Features
- Coin drop payment system installed
- Compact, modern, space‑saving cabinet
- 180° door opening
- 4‑compartment front soap dispenser; automatic dosing compatible
- AISI 304 stainless‑steel drum, tub, and front panel
- Ceramic‑coated shaft sleeve
- Fully programmable vertical touchscreen control
- Up to 200 G extraction
- Large 3″ drain valve; soap box spray rinse
- Stainless‑steel top panel
Short Characteristics
| Rated Capacity | 45 lb (20.5 kg) |
|---|---|
| Extraction (G‑Force) | 200 |
| Drum Diameter × Depth | 24.8 in × 22.8 in (630 mm × 579 mm) |
| Drum Volume | 6.4 cu ft (181 L) |
| Unpacked Dimensions (W×D×H) | 30.9 × 44.9 × 50.6 in (785 × 1,140 × 1,285 mm) |
| Net Weight | 683 lb (310 kg) |
| Voltage / Phase / Frequency | 208–240 V, 1‑Phase, 50/60 Hz |
| Water Use per Cycle | Cold 18.0 gal (68 L) • Hot 16.4 gal (62 L) • Total 34.3 gal (130 L) |
| Drain Valve | 3″ (76.2 mm) outer diameter |
