35lb, Maytag Washer, Rigid Mount, Single Coin Drop, 200G, 208-240V / 60 Hz / 1 Ph

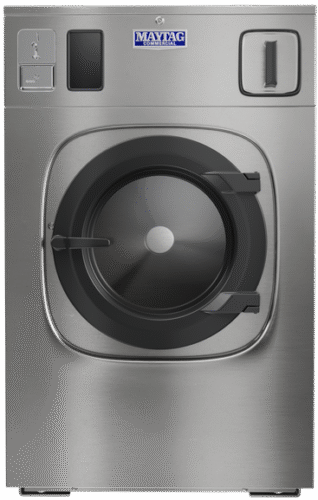

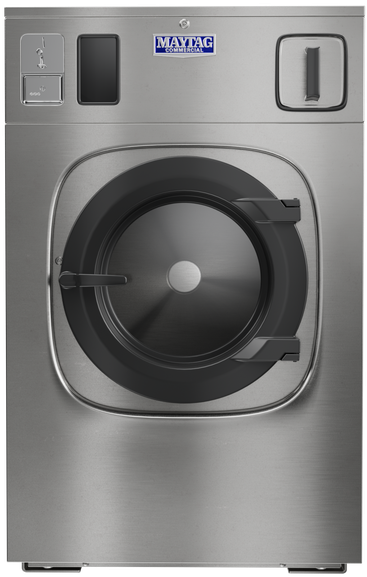

The Maytag® MWR35PDATS is a 35 lb (15.9 kg) rigid‑mount, front‑load washer designed for medium‑volume coin‑operated installations. Stainless‑steel construction and a ceramic‑coated shaft sleeve support long service life, while the fully programmable vertical touchscreen control enables flexible cycle configuration. Up to 200 G extraction helps reduce drying time.
Features
- Coin drop payment system installed
- Compact, modern, space‑saving cabinet
- 180° door opening
- 4‑compartment front soap dispenser; automatic dosing compatible
- AISI 304 stainless‑steel drum, tub, and front panel
- Ceramic‑coated shaft sleeve
- Fully programmable vertical touchscreen control
- Up to 200 G extraction
- Large 3″ drain valve; soap box spray rinse
- Stainless‑steel top panel
Short Characteristics
| Rated Capacity | 35 lb (15.9 kg) |
|---|---|
| Extraction (G‑Force) | 200 |
| Drum Diameter × Depth | 24.8 in × 19.3 in (630 mm × 490 mm) |
| Drum Volume | 5.4 cu ft (153 L) |
| Unpacked Dimensions (W×D×H) | 30.9 × 41.3 × 50.6 in (785 × 1,050 × 1,285 mm) |
| Net Weight | 661 lb (300 kg) |
| Voltage / Phase / Frequency | 208–240 V, 1‑Phase, 50/60 Hz |
| Water Use per Cycle | Cold 15.3 gal (58 L) • Hot 11.1 gal (42 L) • Total 26.4 gal (100 L) |
| Drain Valve | 3″ (76.2 mm) outer diameter |
