50lb, 120V / 60 Hz / 1 Ph, Reversing, White Front

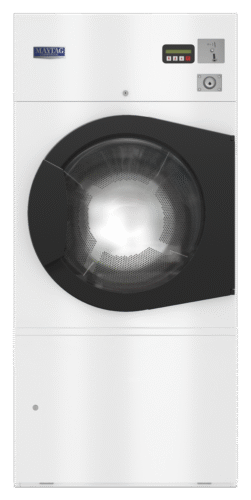

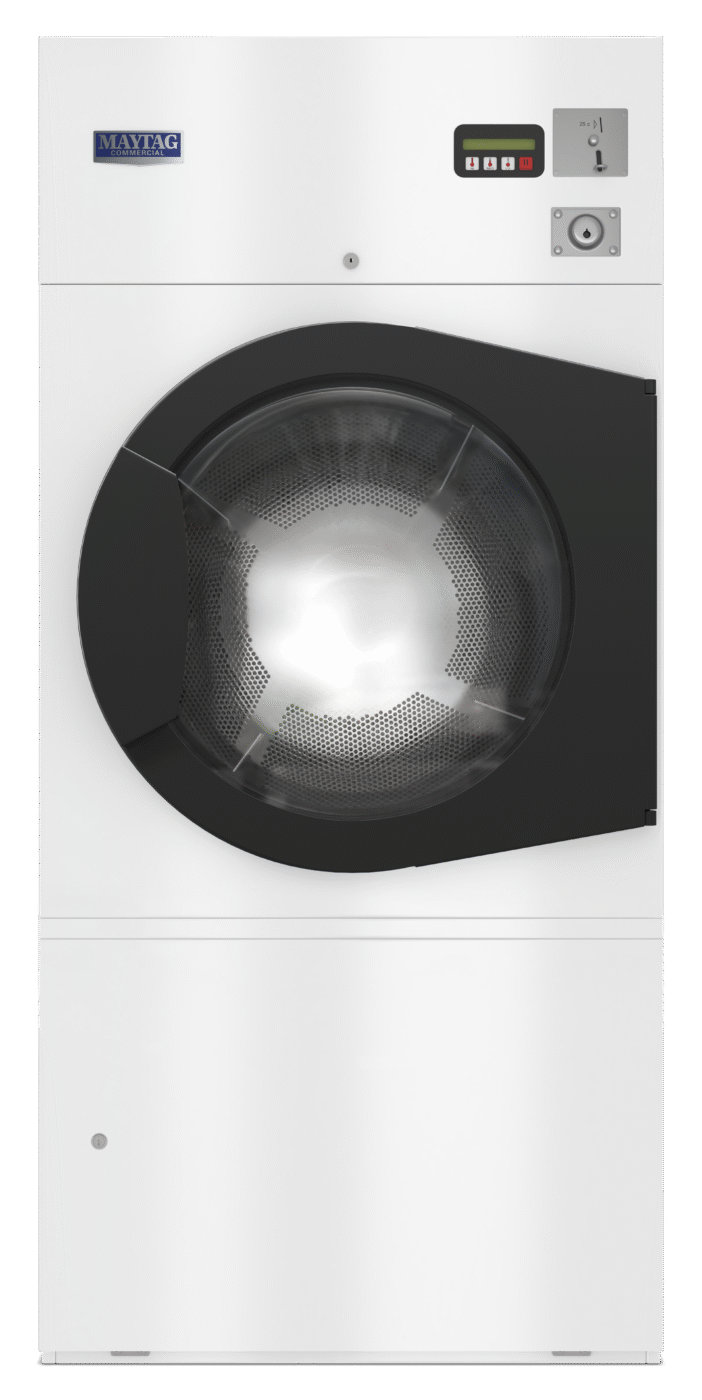

Same mechanical platform and capacity as the AWS version, finished in white to match bright stores or back‑of‑house banks. The MDG53PDAWW’s large basket pairs with reversing action and calibrated airflow to dry bulky items evenly, while Auto‑Dry tuning helps protect fabrics and maintain cycle consistency.
Features
- White front panel; stainless basket
- High‑capacity airflow with 3/4‑hp blower
- Auto‑Dry micro control; adjustable dryness levels
- Inverter drive; variable drum speed and soft‑start
- Reversing tumbler for load balance and wrinkle control
- Self‑cleaning lint screen; locking lint door
- Direct‑spark ignition; pre‑heat function
- Insulated cabinet; reversible door
Short Characteristics
| Capacity (Dry Weight) | 50 lb (22.67 kg) |
|---|---|
| Tumbler Diameter × Depth | 32‑3/4 in × 37‑1/2 in (83.18 cm × 95.25 cm) |
| Tumbler Volume | 18.3 cu ft (518.19 L) |
| Tumbler / Drive Motor | 1 hp (0.75 kW) |
| Blower / Fan Motor | 3/4 hp (0.56 kW) |
| Cabinet (W × D × H) | 34‑1/2 × 49‑3/8 × 73‑5/8 in (87.63 × 125.41 × 187.1 cm) |
| Door Opening (Ø) / Sill Height | 27 in (68.58 cm) / 29‑1/8 in (74 cm) |
| Net / Shipping Weight | 655 / 710 lb (297.10 / 322.05 kg) |
| Electrical | 120 V, 1Ø, 60 Hz; ~9.8 A; 15 A breaker |
| Airflow | 850 CFM (24.06 CMM) |
| Gas Heat Input | 125,000 BTU/hr (31,500 kcal/hr) |
| Gas Inlet / Exhaust | 1/2 in NPT (M) / 8 in connection |
