50lb, 120V / 60 Hz / 1 Ph, Reversing, Stainless Steel Front

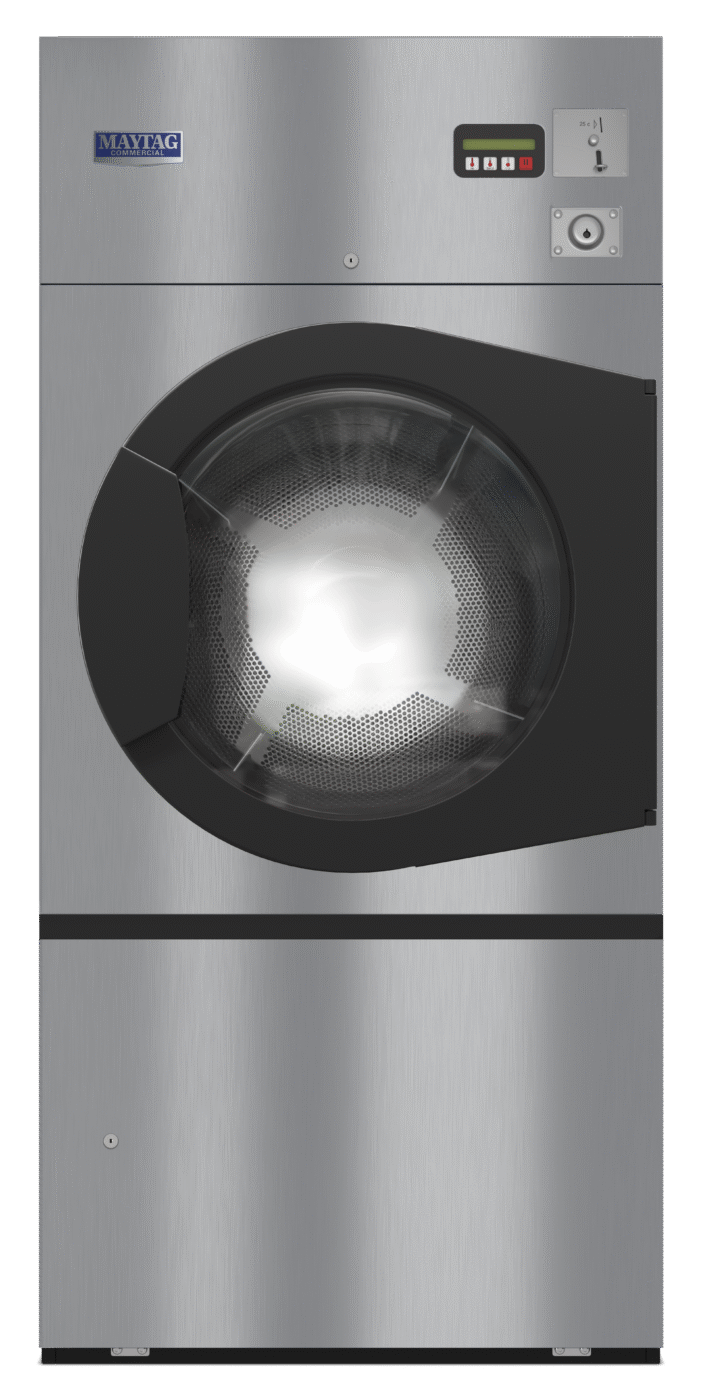

50‑lb Advantage Series dryer with a stainless front for high‑visibility locations. The MDG53PDAWS blends a large 18.3 cu ft basket with high‑capacity airflow and a 3/4‑hp fan motor to move moisture quickly. Intelligent control with Auto‑Dry helps prevent over‑drying while maintaining throughput during peak hours.
Features
- Stainless front panel; stainless basket
- High‑volume airflow and 3/4‑hp blower for rapid heat exchange
- Auto‑Dry microprocessor control with adjustable targets
- Inverter drive; soft‑start and variable drum speed
- Single‑phase reversing tumbler for consistent results
- Self‑cleaning lint screen; locking lint door
- Direct‑spark ignition; pre‑heat system
- Fully insulated cabinet; reversible door
Short Characteristics
| Capacity (Dry Weight) | 50 lb (22.67 kg) |
|---|---|
| Tumbler Diameter × Depth | 32‑3/4 in × 37‑1/2 in (83.18 cm × 95.25 cm) |
| Tumbler Volume | 18.3 cu ft (518.19 L) |
| Tumbler / Drive Motor | 1 hp (0.75 kW) |
| Blower / Fan Motor | 3/4 hp (0.56 kW) |
| Cabinet (W × D × H) | 34‑1/2 × 49‑3/8 × 73‑5/8 in (87.63 × 125.41 × 187.1 cm) |
| Door Opening (Ø) / Sill Height | 27 in (68.58 cm) / 29‑1/8 in (74 cm) |
| Net / Shipping Weight | 655 / 710 lb (297.10 / 322.05 kg) |
| Electrical | 120 V, 1Ø, 60 Hz; ~9.8 A; 15 A breaker |
| Airflow | 850 CFM (24.06 CMM) |
| Gas Heat Input | 125,000 BTU/hr (31,500 kcal/hr) |
| Gas Inlet / Exhaust | 1/2 in NPT (M) / 8 in connection |
