35lb, 120V / 60 Hz / 1 Ph, Reversing, White Front

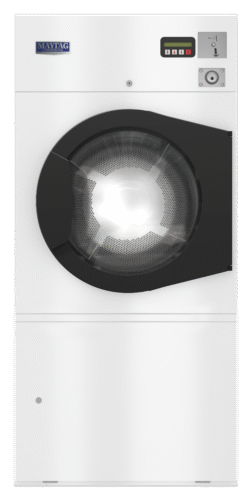

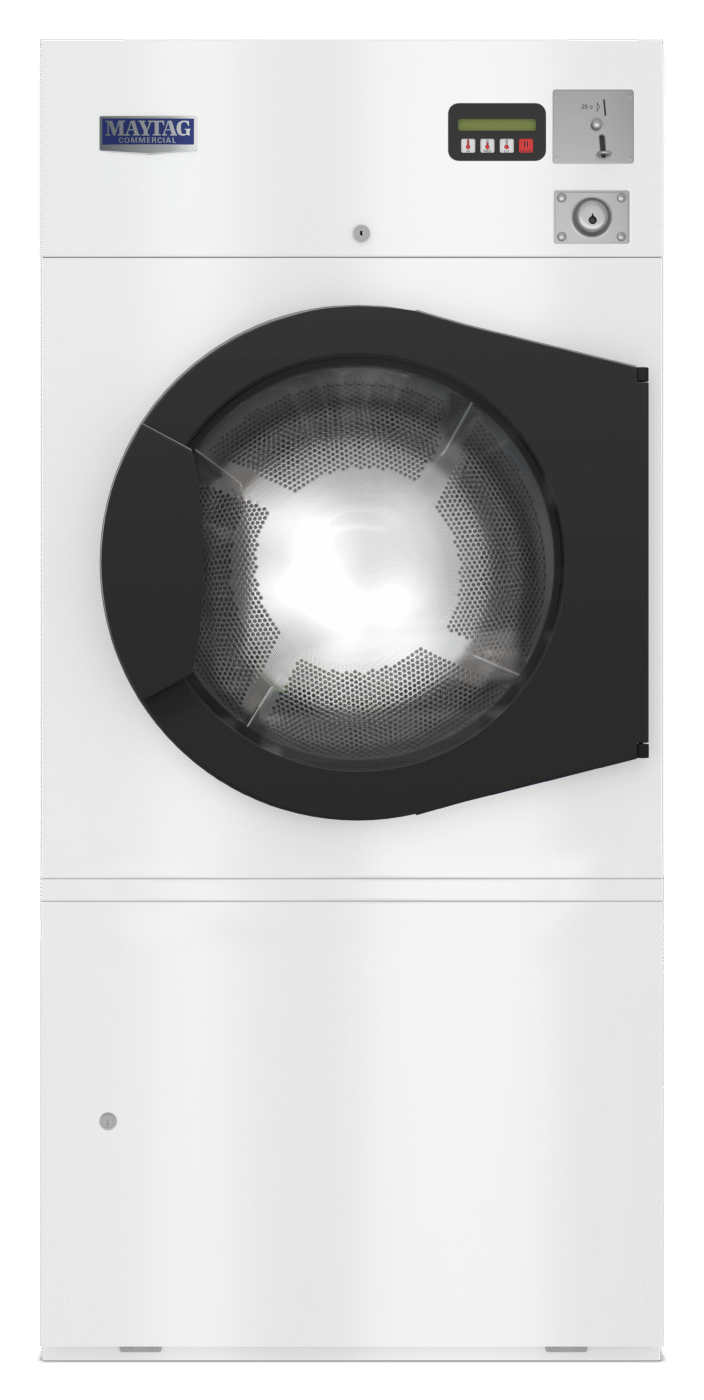

Performance‑matched to the AWS variant, the MDG36PDAWW ships with a bright white front panel to align with light‑tone store interiors while the stainless basket handles daily throughput. Auto‑Dry logic and trans‑axial airflow shorten cycles, and the reversing single‑phase basket helps keep mixed loads untangled from start to finish.
Features
- White front panel; stainless basket
- Inverter‑controlled, soft‑start drive with single belt
- Reversing tumbler for even drying and reduced wrinkles
- Efficient trans‑axial airflow path
- Auto‑Dry micro control; variable speed drum
- Direct‑spark ignition and pre‑heat
- Insulated cabinet with self‑cleaning lint screen
- Two‑point roller support; locking lint door
- Field‑reversible door swing
Short Characteristics
| Capacity (Dry Weight) | 35 lb (15.87 kg) |
|---|---|
| Tumbler Diameter × Depth | 30 in × 29‑3/8 in (76.2 cm × 74.61 cm) |
| Tumbler Volume | 12.0 cu ft (339.8 L) |
| Tumbler / Drive Motor | 1 hp (0.75 kW) |
| Blower / Fan Motor | 1/2 hp (0.37 kW) |
| Cabinet (W × D × H) | 31‑7/8 × 43 × 67‑7/8 in (80.96 × 109.22 × 172.4 cm) |
| Door Opening (Ø) / Sill Height | 21‑1/2 in (54.61 cm) / 30‑9/16 in (77.62 cm) |
| Net / Shipping Weight | 552 / 585 lb (250.38 / 265.35 kg) |
| Electrical | 120 V, 1Ø, 60 Hz; ~10.2 A; 15 A breaker |
| Airflow | 440 CFM (12.46 CMM) |
| Gas Heat Input | 70,000 BTU/hr (17,639 kcal/hr) |
| Gas Inlet / Exhaust | 1/2 in NPT (M) / 6 in & 8 in connections |
