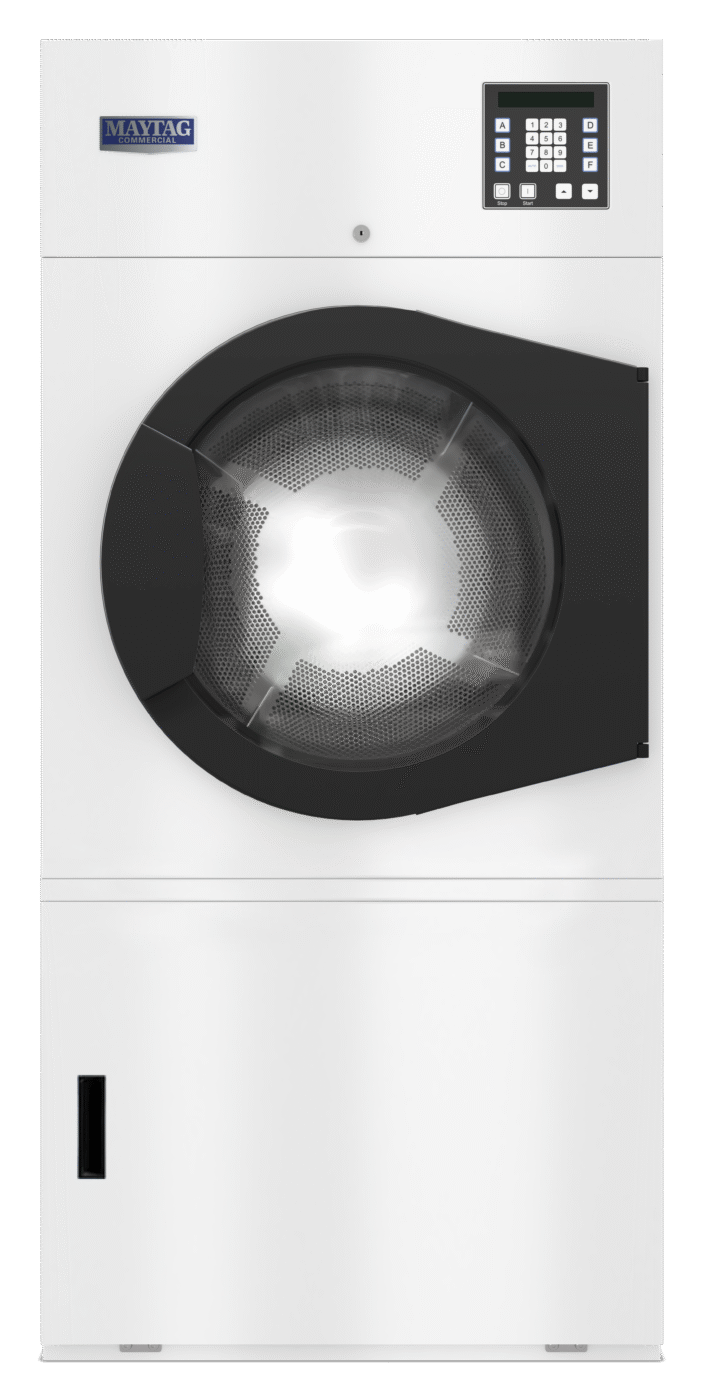

35lb, 120V / 60 Hz / 1 Ph, Reversing, Fire Suppression, White Front
Compact 35‑lb dryer for core OPL throughput. An inverter‑driven, reversing tumbler and trans‑axial airflow deliver even drying across mixed loads. The insulated cabinet and self‑cleaning lint screen help maintain performance shift after shift.
Features
- Intelligent inverter drive with soft‑start
- Stainless basket; tapered ribs for consistent lift‑and‑drop
- Single‑phase reversing basket to reduce roping
- Auto‑Dry control with variable drum speed
- Direct‑spark ignition; pre‑heat system
- Fully insulated cabinet; locking lint door
- Self‑cleaning lint screen; reversible door
Short Specifications
| Capacity (Dry Weight) | 35 lb (15.87 kg) |
|---|---|
| Tumbler Ø × Depth | 30 in × 29‑3/8 in (76.2 × 74.61 cm) |
| Tumbler Volume | 12.0 cu ft (339.8 L) |
| Tumbler / Drive Motor | 1 hp (0.75 kW) |
| Blower / Fan Motor | 1/2 hp (0.37 kW) |
| Cabinet (W × D × H) | 31‑7/8 × 43 × 67‑7/8 in (80.96 × 109.22 × 172.4 cm) |
| Door Opening (Ø) / Sill Height | 21‑1/2 in (54.61 cm) / 30‑9/16 in (77.62 cm) |
| Net / Shipping Weight | 552 / 585 lb (250.38 / 265.35 kg) |
| Electrical | 120 V, 1Ø, 60 Hz; ~10.2 A; 15 A breaker |
| Airflow | 440 CFM (12.46 CMM) |
| Gas Heat Input | 70,000 BTU/hr (17,639 kcal/hr) |
| Gas Inlet / Exhaust | 1/2 in NPT (M) / 6 in & 8 in connections |
| Water Connection | 3/4″–11.5 NH |
